TRIO

Ingenuity at Work

All Awnings

Product Description

Designed for special applications where available width limits the projection of a regular lateral arm awning, Ital-Shades’ exclusive Trio model extends up to 13 feet in projection within as little as 8 feet of width. This impressive reach is achieved without sacrificing its elegant design.

Trio installs like any classic retractable lateral arm awning, making it especially useful for condominiums, narrow patios, and compact outdoor spaces. Its innovative design eliminates the need for overlapping arms, preventing eye strain.

Thanks to its unique engineering, Trio’s arms retract neatly within the same space required for a regular lateral arm awning, offering maximum shade coverage without compromising space or style.

Product Options

Product Features

Durable

Trio is engineered to meet the most stringent mechanical standards. Its arms are tested to last twice the typical industry lifespan, and the stainless steel cables are protected with a UV-resistant coating to enhance durability.

Beautiful

With its sleek design and compact profile when retracted, Trio enhances the value of your home. Choose from hundreds of vivid fabric colors to create a personalized look that complements your exterior. The smooth, flexible movement of its arms adds to its refined appeal.

Elegant

True elegance is subtle. Trio’s discreet design blends seamlessly with your home’s siding while extending your outdoor living space. Its generous size and structural strength bring a graceful ambiance to any setting.

Dependable

Crafted from premium materials, Trio’s frame is finished with electrostatic powder-coated epoxy paint for lasting resistance against chipping, cracking, and fading. Like all Ital-Shades awnings, it is backed by a ten-year warranty for long-term peace of mind.

Product Highlights

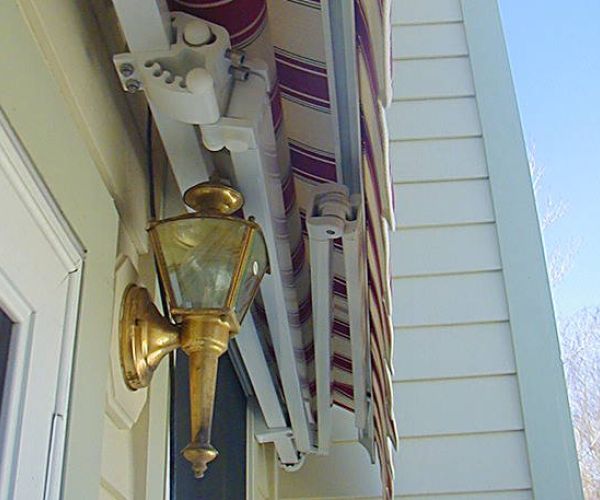

When fully closed, Trio occupies the same compact space as a standard lateral arm awning. Its design allows for seamless integration into tight spaces without compromising appearance or function.

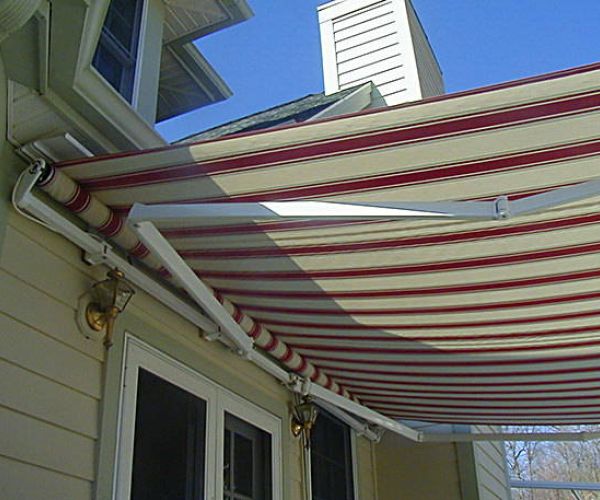

As the awning begins to extend, the front section opens first, initiating the projection in a smooth and controlled motion.

Once the front section is fully extended, it provides initial coverage while setting the stage for the next movement.

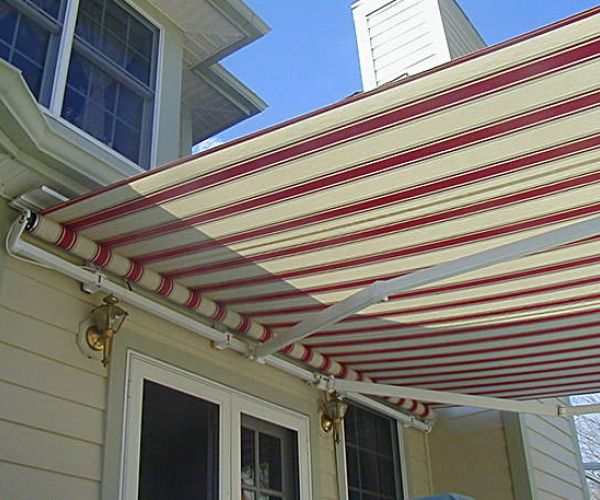

The rear section of the arm then begins to open, further extending the reach of the awning with precision and strength.

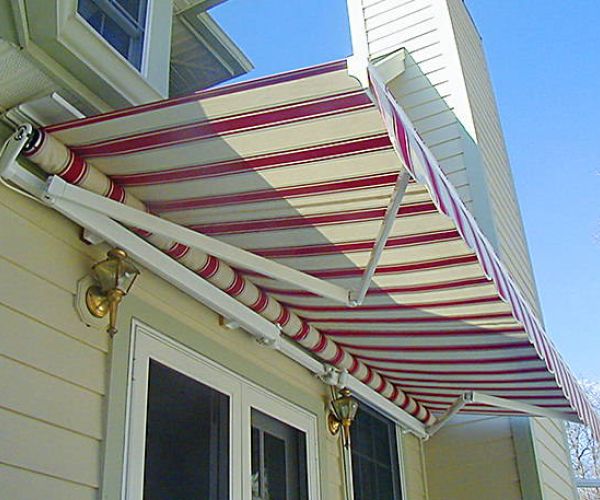

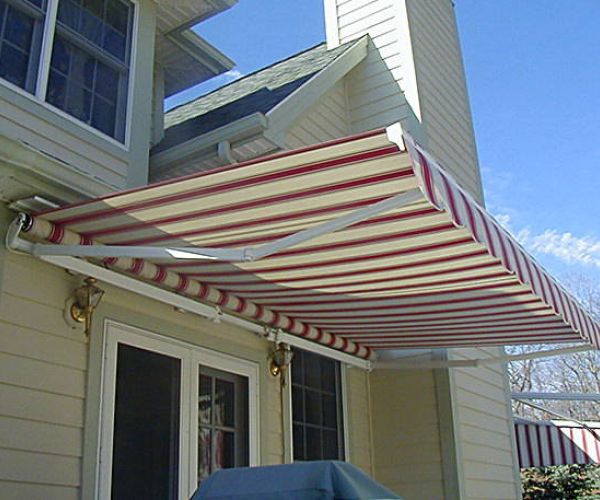

After full deployment, the back section locks into place, ensuring a stable and tensioned fabric surface ready to withstand day-to-day use.
Thanks to this smart dual-arm motion, Trio achieves a larger projection even when installation width is limited, making it ideal for narrow patios, balconies, and other space-restricted environments.

Technical Specifications

Width Range
8′ to 14′ (1/4″ increment)
Projection Range
8’7″, 10′, 12′, 13′
Side dimension w/Hood
10″ H x 10″ W
Side size w/out Hood
9″ H x 9″ W
Hood

Optional

Hood Shape
10″ Flat double pitched
Opening Control

Manual Gear or Motorized

Installation Option

Wall, Soffit, Roof Mounted

Bracket Size
8 1/2” H x 2 3/8” W x 4 3/4” L
Standard Pitch Control

Bolt Lock System

Crank Pitch Control
N/A
Drop Down Valance
N/A
Fabric Options

Over 300 acrylic patterns

Leg Kit

Optional

Standard Frame Color

White

Custom Frame Color

Any (on request)

Frame Warranty

10 Years
Product Options

Media

Product Options

Fabrics

Ital-Shades selects only the finest fabrics available on the market. Please visit the links below and follow the instructions to explore our premium awning fabric collections.

SUNBRELLA

SATTLER

TEMPOTEST

Hood & Sides

All Ital-Shades awnings are available with an optional hood and matching hood ends. The hood serves as an aluminum cover that protects the awning from rain and snow when fully retracted. Hood ends are also available to complete the protective enclosure and enhance the overall look of the system.

Front Valance

Straight
Low Scallops
High Scallops
Waves
Greek
Russian Key

Roof Bracket

Roof installation is recommended when there is limited clearance or when swing doors, drains, or gutters interfere with a standard wall mount. One roof bracket is required for each standard bracket.

Each roof bracket features an adjustable hinge system designed to replicate the mounting position of a wall installation along the roofline. All Ital-Shades roof brackets are available in the same color as the selected awning frame for a seamless, coordinated finish.

Rain and Wind Stabilizers Legs Kit

With its exclusive front-leg system, Ital-Shades provides an effective solution for managing wind and rain loads on nearly all of its lateral arm models, except for the Nova.

These stabilizers are hardware-free and feature reversible ends for easy, error-proof installation. Their top and bottom joints are engineered to flex in the direction of the awning’s closure, preserving flexibility while helping to neutralize the impact of wind and rain.

Warning: Legs must be removed before closing awnings.

Electricals

Advanced technology has transformed every aspect of modern life, including how we control our awnings and shading systems. Somfy, the industry leader in tubular motors and intelligent automation, powers all Ital-Shades products. With over 450 active patents, Somfy continuously innovates to deliver greater convenience, comfort, security, and energy efficiency. Below is a quick overview of the features available with our systems. For more details, please visit somfysystems.com.

Product Highlights

When we refer to how to motorize an Alutex product, customers can select between two major solutions, with or without override crank service:

Without override service
With override service able to provide manual control in case of blackout
The Eolis 3D WireFreeTM RTS Wind Sensor is a wireless, battery powered wind sensor that will automatically retract an awning based on wind generated movements even when you are away. Battery powered, has an indicator to alert you when the battery needs to be replaced.
Ondeis is a solar-powered combined rain and sun sensor compatible with Radio Technology Somfy® motorized exterior products, including awnings, and screens. The Sensor is completely wireless and uses optical rain-sensing technology to measure rainfall and sends an RTS command when rainfall exceeds the user-selected threshold. The Sensor also utilizes a sun- level sensor that sends an RTS command when sunlight exceeds the user-selected threshold.

With specific reference to their way to be connected to the power source, both motors can be selected as:

Standard Power Solution (hard-wired and controlled by a classical wall switch)

RTS Solution (with plug wire and controlled by a remote transmitter)

The Smoover RTS surface mounted wall switch avoids cutting into drywall. This single channel, battery-operated solution is easy to install and does not require an electrician. Available with 7 decorative color frames , users can easily complement any decor.

The myLink app by Somfy puts you in control, so that you can operate your motorized solutions whether you are home or not. At work and realized you forgot to close your shades for the day? Not a problem. With a simple tap of myLink app you can close all your shades.
