MADERA GIANT

Beyond the limit

All Awnings

Product Description

Ital-Shades has long been recognized for delivering some of the most innovative and boundary-pushing solutions in the retractable awning industry. With the Madera Giant, the company continues that tradition, setting a new benchmark for size, performance, and durability.

As its name suggests, Madera Giant is the largest lateral arm retractable awning currently available in the U.S. market, offering an extraordinary 20-foot projection. This unmatched reach redefines what is possible in outdoor shading and is designed to serve high-demand commercial and residential applications.

Despite its massive scale, Madera Giant maintains the refined aesthetic and elegant lines that Ital-Shades is known for. It features a double square bar system and extra heavy-duty arms, providing the same operational versatility as classic retractable models but with superior structural strength.

Standard installation includes two brackets per arm (13 inches high) and an additional center bracket to align and support the dual back square bars. While shorter projections, such as 15 or 16 feet, can be mounted to standard siding with a reinforced installation board, reinforced concrete or cinder block walls are strongly recommended for full 20-foot extensions.

Thanks to its exceptional build quality, minimal front clearance is needed even at maximum projection, for example, just 2 feet of clearance for a 20-foot extension, making it an ideal choice for large patios, terraces, or commercial fronts.

Madera Giant comes in a white powder-coated aluminum frame with stainless steel hardware and chained elbows for superior durability. Custom frame colors are also available upon request to suit your architectural needs.

⚠️ CAUTIONARY AND IMPORTANT OPERATING INFORMATION

Retractable awnings contain strong springs that are under constant tension. They are specifically designed to provide sun protection and should be retracted during inclement weather.

These systems are not intended to withstand high winds, heavy rain, or snow. To avoid potential damage not covered by the warranty, awnings must be fully retracted during unfavorable weather conditions. Proper operation and care will help ensure long-term performance and safety.

Product Options

Product Features

Durable

Madera Giant is engineered to meet the most demanding mechanical standards. Its arms are tested to last twice the typical industry lifespan, and the stainless steel cables are protected with a UV-resistant coating to ensure long-term strength and durability.

Beautiful

With a sleek design, compact appearance when retracted, and graceful arm movement when extended, Madera Giant is made to elevate the look of your home or business. It is available in hundreds of vivid fabric options, allowing you to match your unique style with confidence.

Elegant

True elegance is subtle. Madera Giant is designed to blend naturally with your building’s exterior while expanding your outdoor space. Its refined presence adds both functionality and ambiance without overpowering your architectural style.

Dependable

Constructed from premium materials, Madera Giant is finished with electrostatic powder-coated epoxy paint on all parts for lasting resistance to chipping, cracking, and fading. Like all Ital-Shades products, it is backed by a ten-year warranty for peace of mind and long-term performance.

Product Highlights

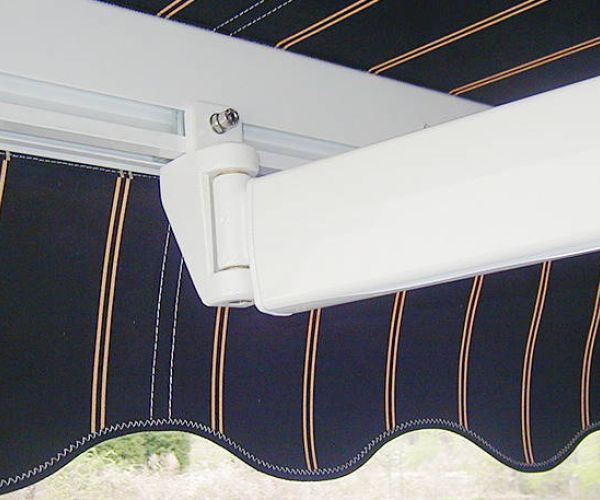

Each Giant arm is connected to the awning’s front bar through a specially engineered joint. This allows for smooth, precise rotation of the arm around its front pin, ensuring consistent operation and minimal stress during extension and retraction.

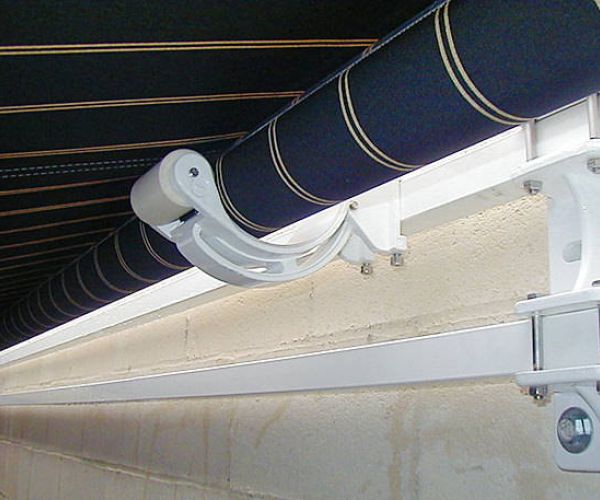

Due to the high tension required for its oversized projections, Madera Giant is equipped with a cradle center support. This addition helps maintain perfect fabric alignment along the rolling tube, even under continuous tension and use.

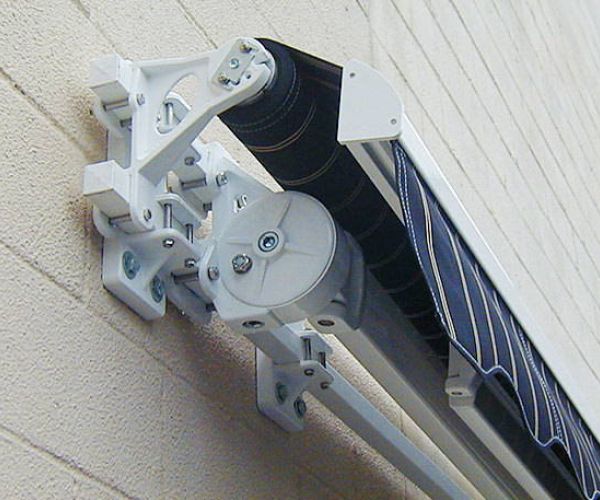

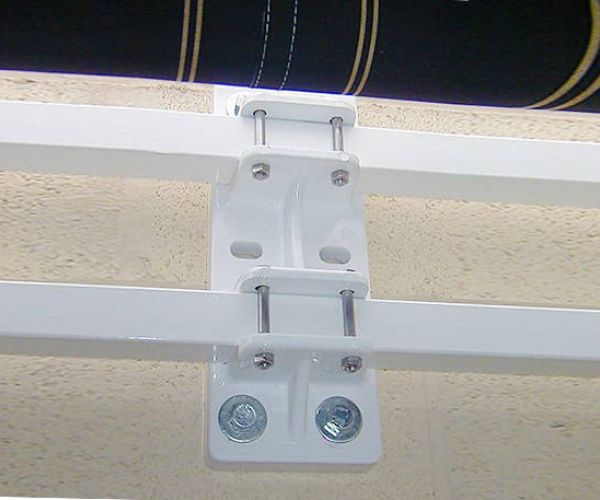

Each Madera Giant includes five installation brackets for optimal support. There are two brackets per arm and a central bracket that stabilizes the double square bar system and ensures a secure mount, especially under heavier load conditions.
When fully retracted, the Madera Giant sits just a few inches from the wall, preserving the compact and elegant profile of a classic lateral arm awning despite its impressive size and strength.

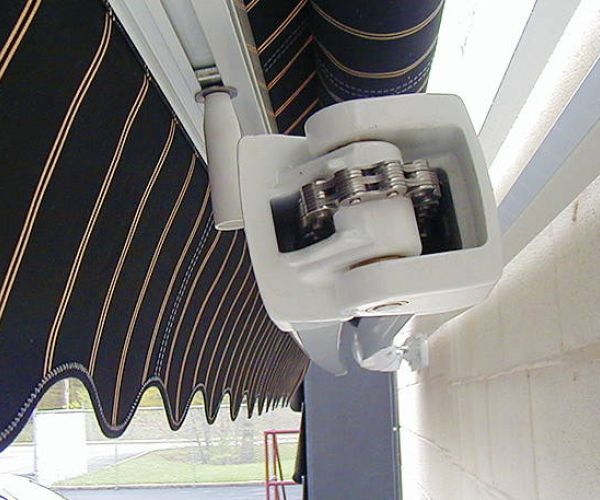

To manage the extreme spring tension of its oversized arms, every Madera Giant elbow is equipped with a stainless steel chain. This component enhances durability and allows the system to operate safely and efficiently under heavy loads.

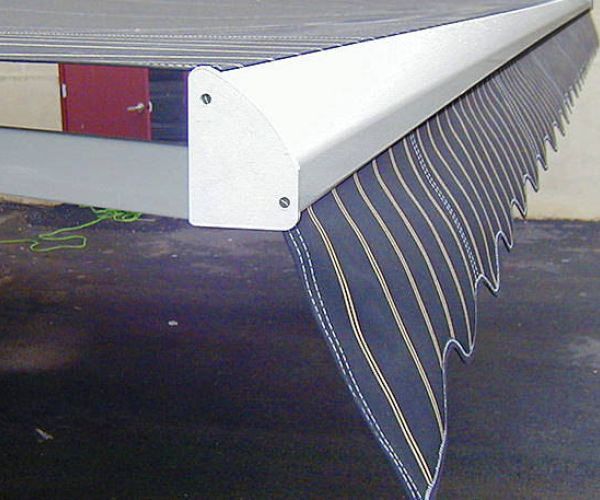

The front bar of the Giant model is designed not only for style but also as a reinforced stabilizer. It provides added resistance against wind while maintaining the clean, elegant appearance that defines the Ital-Shades aesthetic.

Technical Specifications

Width Range
18′ to 40′ (1/4” increment)
Projection Range
15′, 16′, 17′, 18′, 19′ 20′
Side dimension w/Hood
13″ H x 12″ W
Side size w/out Hood
13″ H x 12″ W
Hood

Optional

Hood Shape
11′ Round
Opening Control
Motorized (Gear is not divided)
Installation Option

Wall, Soffit, Roof Mounted

Bracket Size
13″ H x 6″ W x 1 1/2″D
Standard Pitch Control

Bolt Lock System

Drop Down Valance

Optional

Pitch Control

Optional

Fabric Options

Over 300 acrylic patterns

Leg Kit

Optional

Standard Frame Color

White

Custom Frame Color

Any (on request)

Frame Warranty

10 Years
Product Options

Media

Product Options

Fabrics

Ital-Shades selects only the finest fabrics available on the market. Please visit the links below and follow the instructions to explore our premium awning fabric collections.

SUNBRELLA

SATTLER

TEMPOTEST

Hood & Sides

All Ital-Shades awnings are available with an optional hood and matching hood ends. The hood serves as an aluminum cover that protects the awning from rain and snow when fully retracted. Hood ends can also be added to complete the enclosure, enhancing both protection and the overall appearance.

Front Valance

Straight
Low Scallops
High Scallops
Waves
Greek
Russian Key

Adjustable Valance

Ital-Shades’ Drop-Down Valance is a front valance system designed to provide adjustable sun protection on demand. It is compatible with nearly all Ital-Shades retractable lateral arm awnings.

This secondary valance is positioned behind the standard valance and housed within a unique front cassette that replaces the regular awning front bar. It can be rolled up or down by simply operating a small gear located at one end of the cassette.

The Drop-Down Valance is available in a 4-foot height and a maximum width of 24 feet. It can be made using the same fabric as the awning for color coordination or with a sunscreen mesh in black, cream, gray, or brown.

Rain and Wind Stabilizers Legs Kit

With its exclusive front-leg system, Ital-Shades provides an effective solution for wind and rain loads on nearly all its lateral arm models, excluding the Nova.

These hardware-free stabilizers feature reversible ends for easy, error-proof installation. Their top and bottom joints flex toward the awning’s closing direction, preserving flexibility while neutralizing the effects of wind and rain.

Warning: Legs must be removed before closing awnings.

Roof Bracket

Roof installation is recommended when there is insufficient clearance or when swing doors, drains, or gutters obstruct a standard wall installation. One roof bracket is required for each regular wall bracket.

Each roof bracket features an adjustable hinge system that replicates a virtual wall position along the roofline. All Ital-Shades roof brackets are available in the same color as the selected awning frame for a seamless and coordinated appearance.

Electricals

Advanced technology has transformed every aspect of modern life, including how we control our awnings and shading systems. Somfy, the industry leader in tubular motors and intelligent automation, powers all Ital-Shades products. With over 450 active patents, Somfy continuously innovates to deliver greater convenience, comfort, security, and energy efficiency. Below is a quick overview of the features available with our systems. For more details, please visit somfysystems.com.

Product Highlights

When we refer to how to motorize an Alutex product, customers can select between two major solutions, with or without override crank service:

Without override service
With override service able to provide manual control in case of blackout
The Eolis 3D WireFreeTM RTS Wind Sensor is a wireless, battery powered wind sensor that will automatically retract an awning based on wind generated movements even when you are away. Battery powered, has an indicator to alert you when the battery needs to be replaced.
Ondeis is a solar-powered combined rain and sun sensor compatible with Radio Technology Somfy® motorized exterior products, including awnings, and screens. The Sensor is completely wireless and uses optical rain-sensing technology to measure rainfall and sends an RTS command when rainfall exceeds the user-selected threshold. The Sensor also utilizes a sun- level sensor that sends an RTS command when sunlight exceeds the user-selected threshold.

With specific reference to their way to be connected to the power source, both motors can be selected as:

Standard Power Solution (hard-wired and controlled by a classical wall switch)

RTS Solution (with plug wire and controlled by a remote transmitter)

The Smoover RTS surface mounted wall switch avoids cutting into drywall. This single channel, battery-operated solution is easy to install and does not require an electrician. Available with 7 decorative color frames , users can easily complement any decor.

The myLink app by Somfy puts you in control, so that you can operate your motorized solutions whether you are home or not. At work and realized you forgot to close your shades for the day? Not a problem. With a simple tap of myLink app you can close all your shades.
