Technical Specifications
Width Range | 10’ to 19’6” (1/4” increment) |
Projection Range | 5’4” to 10’ |
Side dimension w/Hood | 10” H x 10” W |
Side size w/out Hood | 9” H x 9” W |
Hood | Optional |
Hood Shape | Flat double pitched |
Opening Control | Manual Gear or Motorized |
Installation Option | Wall, Soffit, Roof Mounted |
Bracket Size | 5 1/4” H x 2 5/8” W x 4 3/4” L |
Standard Pitch Control | Bolt Lock System |
Crank Pitch Control | Optional |
Drop Down Valance | Optional |
Fabric Options | Over 300 acrylic patterns |
Leg Kit | Optional |
Standard Frame Color | White |
Custom Frame Color | Any (on request) |
Frame Warranty | 10 Years |
Media
Fabrics
Hood & Sides
Front Valance
Adjustable Valance
Ital-Shades’ Drop-Down Valance is a front-mounted accessory designed to provide adjustable sun protection on demand. It is compatible with nearly all Ital-Shades retractable lateral arm awnings.
This secondary valance is positioned behind the standard valance and is housed within a special front cassette that replaces the regular front bar. It can be raised or lowered manually using a small gear located at one end of the cassette.
The Drop-Down Valance is available in a 4-foot height and up to 24 feet in width. It can be crafted in the same fabric as the main awning for a coordinated look or in a sunscreen mesh in black, cream, gray, or brown for enhanced shade and privacy.

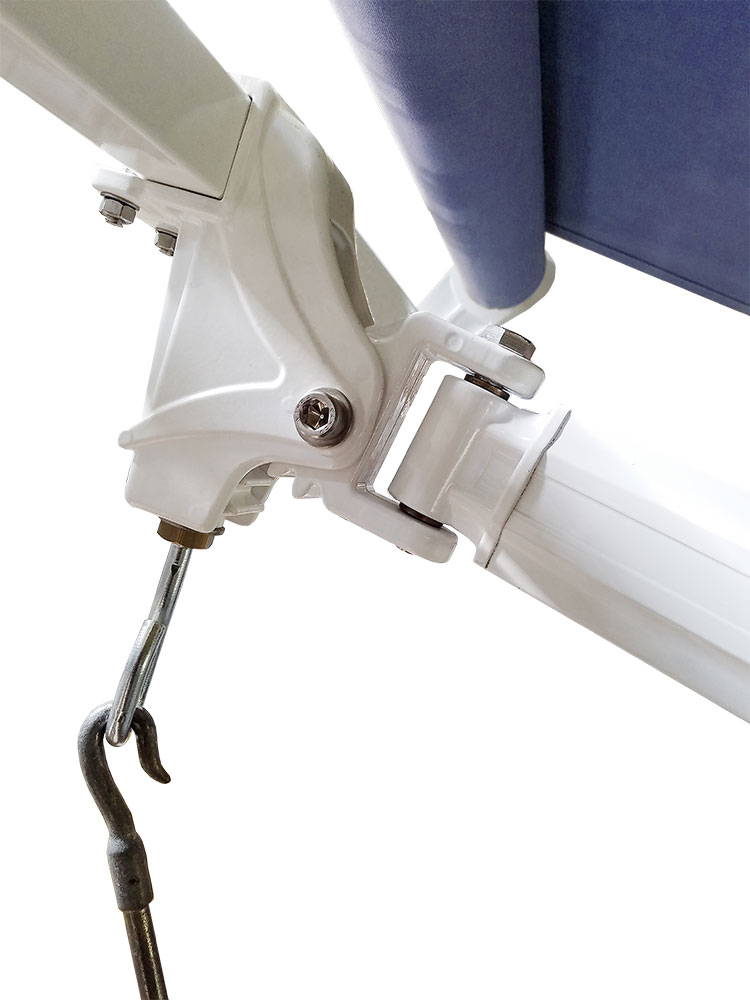

Pitch Control
A pitch control system is available with most Ital-Shades lateral arm awnings. This feature allows users to adjust the angle of each arm at any time using the included awning crank. With a simple turn, you can lower the arms to block low-angle sunlight or raise them back to their original position as the sun rises higher in the sky. This optional system adds flexibility and comfort to your outdoor shading experience.

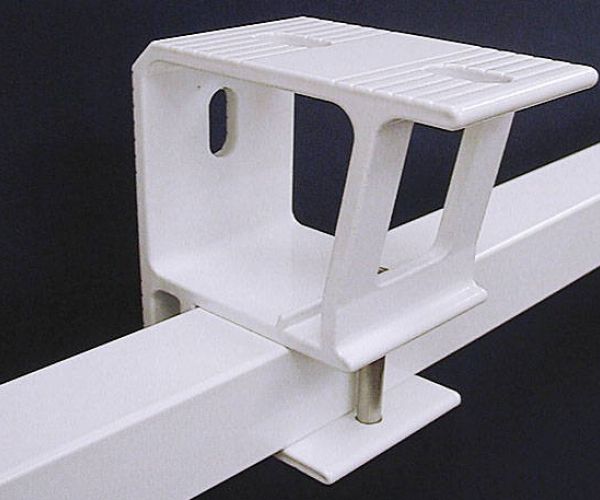

Roof Bracket
Roof installation is recommended when wall space is limited or obstructed by swing doors, drains, or gutters. In these cases, one roof bracket is required for each standard wall bracket.
Each roof bracket features an adjustable hinge system designed to replicate the positioning of a wall mount along the roofline. All Ital-Shades roof brackets are available in the same color as the selected awning frame for a cohesive and polished look.
With its exclusive front-leg system, Ital-Shades provides an effective solution for managing wind and rain loads on nearly all lateral arm models (excluding the Nova).
These stabilizers are hardware-free and feature reversible ends, making installation simple and error-proof.
The top and bottom joints are engineered to flex in the direction of the awning’s closing motion, maintaining structural flexibility while helping to neutralize wind and rain pressure.
Warning: Legs must be removed before closing awnings.
Electricals
Advanced technology has transformed every aspect of modern life, including how we control our awnings and shading systems. Somfy, the industry leader in tubular motors and intelligent automation, powers all Ital-Shades products. With over 450 active patents, Somfy continuously innovates to deliver greater convenience, comfort, security, and energy efficiency. Below is a quick overview of the features available with our systems. For more details, please visit somfysystems.com.
Product Highlights
When we refer to how to motorize an Alutex product, customers can select between two major solutions, with or without override crank service:
With specific reference to their way to be connected to the power source, both motors can be selected as:
Standard Power Solution (hard-wired and controlled by a classical wall switch)
RTS Solution (with plug wire and controlled by a remote transmitter)
The Smoover RTS surface mounted wall switch avoids cutting into drywall. This single channel, battery-operated solution is easy to install and does not require an electrician. Available with 7 decorative color frames , users can easily complement any decor.
The myLink app by Somfy puts you in control, so that you can operate your motorized solutions whether you are home or not. At work and realized you forgot to close your shades for the day? Not a problem. With a simple tap of myLink app you can close all your shades.
